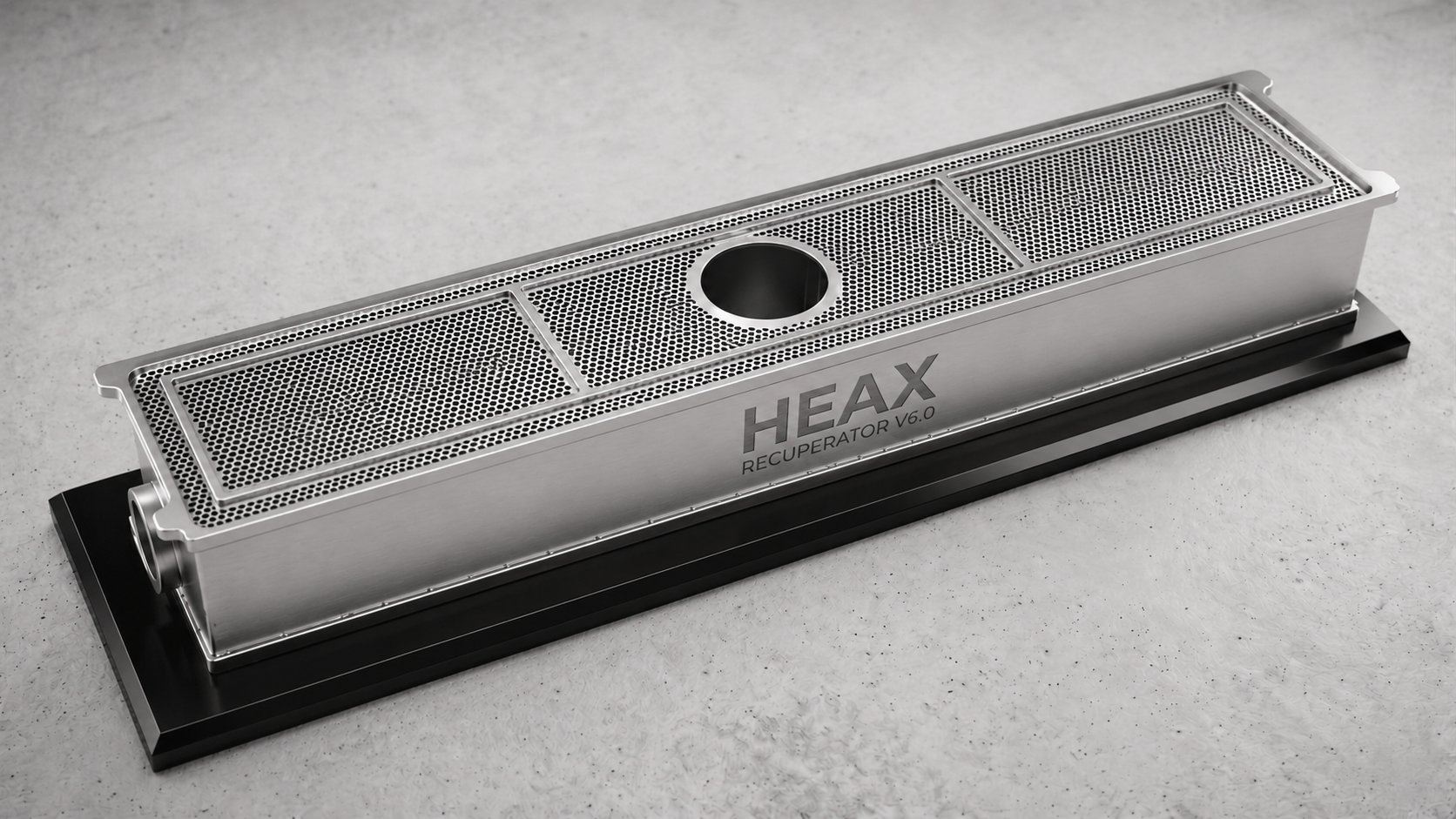

HEAX MST-Q150M50 Modular Shell & Tube Recuperator
Patented · TRL 5
MST-Q150M50
Modular Shell & Tube
85%
Effectiveness
800°C
Hot-side inlet
158 kW
Thermal duty
60 kg
Core mass
−30% ΔP vs TEMA · laser-welded tubes · β = 245 m²/m³
Discover MST platform →

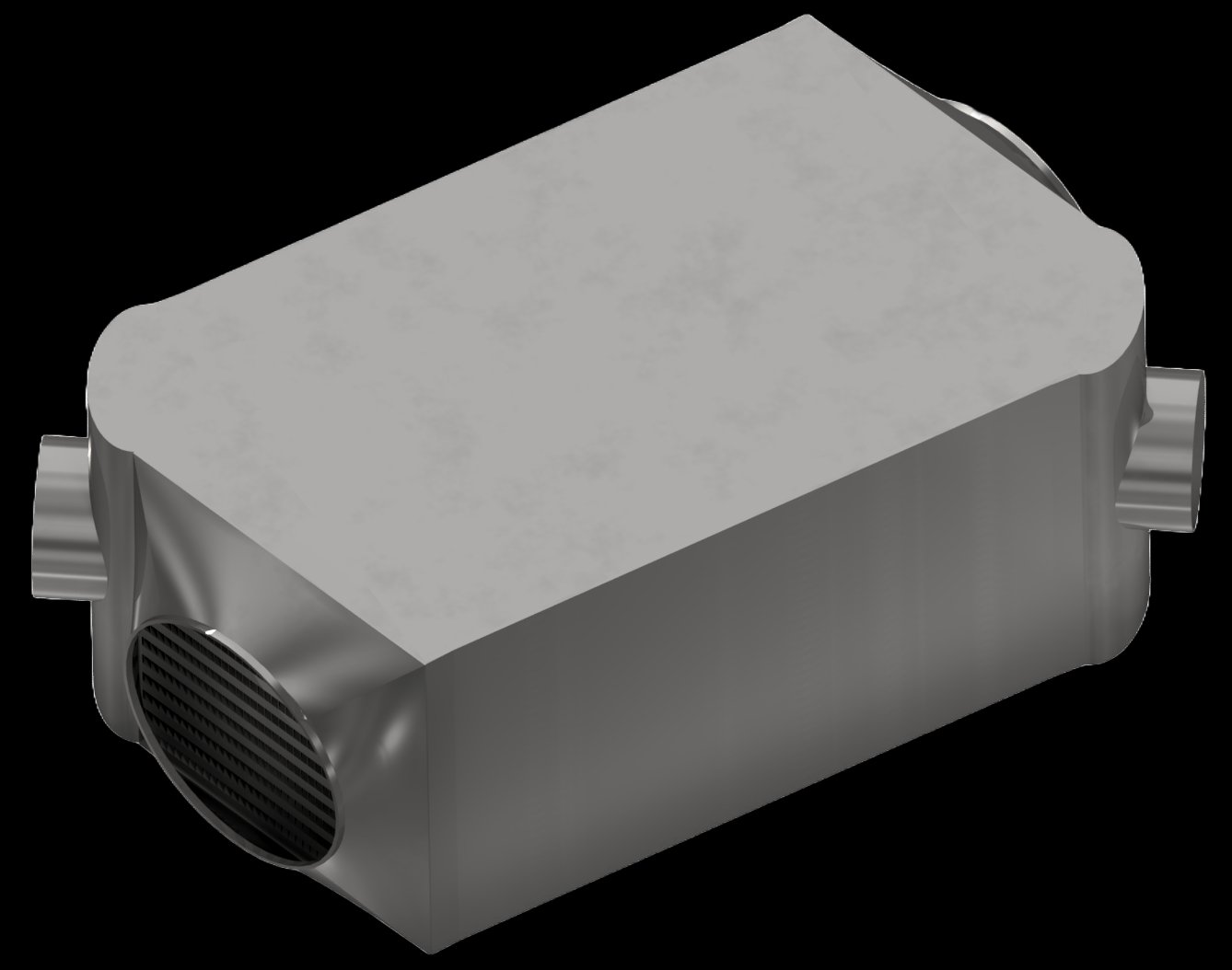

HEAX TITAN-X93 3D-Printed Recuperator
Metal AM · SLM
TITAN-X93
3D-Printed Recuperator
93%
Effectiveness
850°C
Hot-side inlet
1000
kg/h each side
50 kg
Core mass
Monolithic SLM · Inconel/310S · zero brazed joints · 75/30 mbar ΔP
Peak effectiveness →

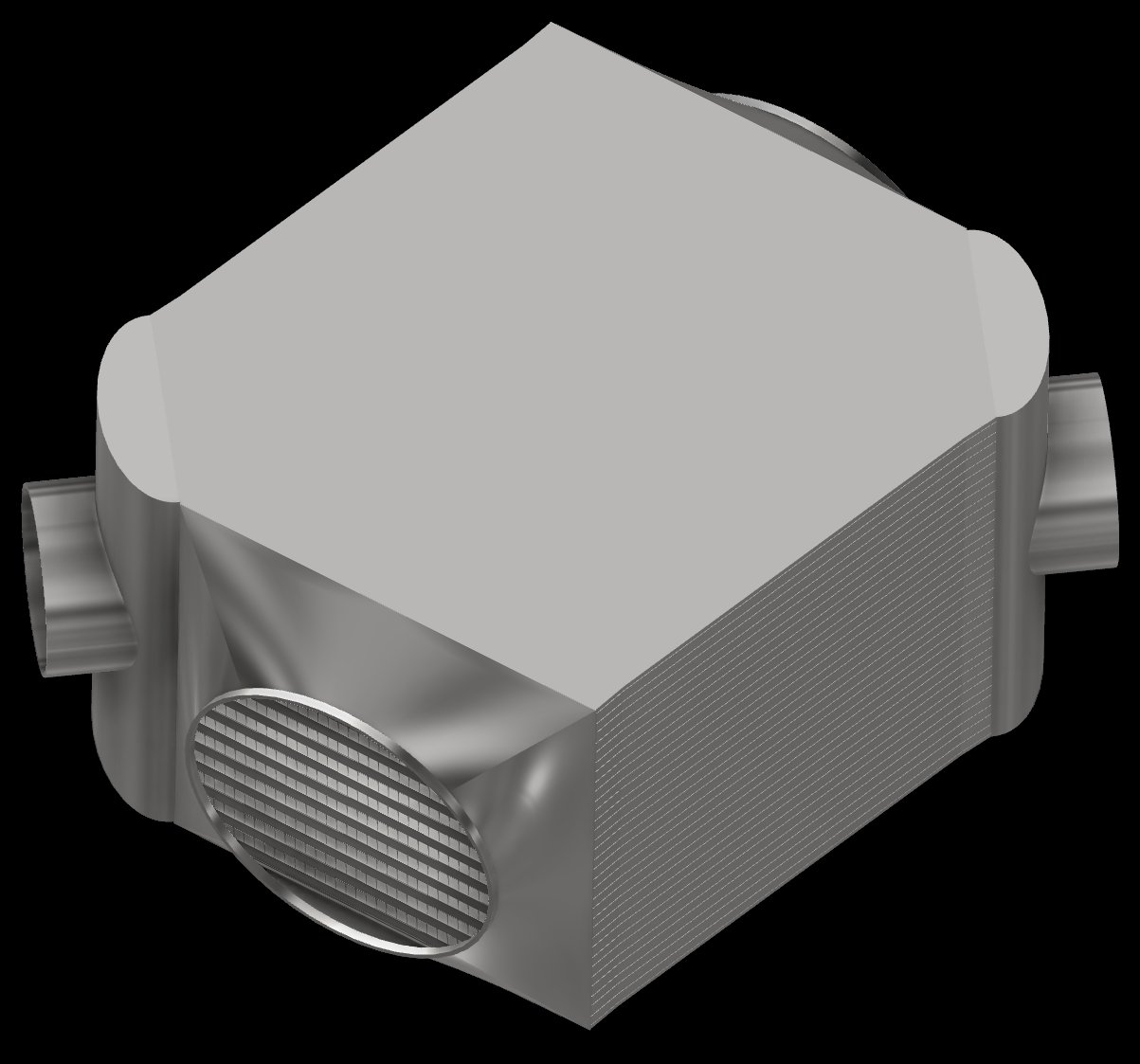

HEAX AGILE-L85 Lightweight 3D-Printed Recuperator
Ultra-light · −40% mass
AGILE-L85
3D-Printed · Lightweight
85%
Effectiveness
23 kg
Core mass
850°C
Hot-side inlet
20/40
ΔP cold/hot (mbar)
Pareto-optimised for mass & ΔP · 310S/309 · mobility & aerospace
Lightest on the Pareto front →
🔧
Engineering Services
Thermal design · CFD · NSGA-II optimisation · manufacturing · test bench validation
→
93%
Peak effectiveness
(TITAN-X93)
950°C
Max hot-side duty
validated on bench
−50%
Shell-side ΔP reduction
vs TEMA baseline
5×
Prototypes built
& bench-tested (TRL 5)
Our product lines

Two architectures, one manufacturing team

Every unit is the output of an NSGA-II multi-objective optimisation on your exact duty, not an off-the-shelf product. Delivered with a full thermo-hydraulic report.

Patented TRL 5 · 5 prototypes tested Flagship: MST-Q150M50

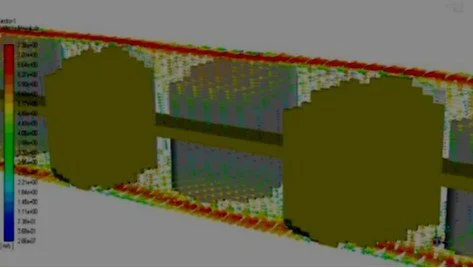

Modular Shell & Tube Platform

Section-wise parameterisation: (N_t, D_o, P_t, t_w, material) tuned independently per section. Welded partitions eliminate Tinker bypass. Rectangular envelope removes cylindrical dead volume. Result vs TEMA: −50% ΔP, −37% mass, +10 pts effectiveness at iso-duty.

  • Central hot plenum S0 → symmetric S1–S4 bundles each side
  • Ultra-thin tubes 0.08–0.15 mm wall · laser-welded or brazed
  • Inconel/310S hot sections · SS 304/carbon cold sections
  • Zero shell-side bypass, welded partitions, not baffles
  • Envelope: 499 × 178 × 689 mm · β ≈ 245 m²/m³
  • Customisable: per-duty NSGA-II re-run, proposal in 10 working days
85.1%
Effectiveness ε (MST-Q150M50)
157.9 kW
Thermal duty · air-to-air
34.4 mb
Shell-side ΔP (vs ~70 mb TEMA)
NTU 5.71
Balanced counter-flow
Metal SLM/EBM Patented winglet fin Two flagship models

3D-Printed Additive Line

Patented winglet-offset fin architecture, topology-optimised, flow-adaptive, impossible to stamp or braze. Printed monolithic in 310S, 309 or Inconel. −20 to −35% ΔP vs classical offset strip fins at iso-effectiveness. Zero brazed joints, zero leak paths.

TITAN-X93
Peak effectiveness
93% · 50 kg · 850°C · 1000 kg/h · Inconel/310S
AGILE-L85
Mass-optimised
85% · 23 kg · 850°C · 1000 kg/h · 310S/309
93%
Peak effectiveness (TITAN-X93)
23 kg
Lightest flagship (AGILE-L85)
−40%
Mass vs conventional plate-fin
850°C
Continuous hot-side duty

Engineering Services

Thermal design · CFD k-ω SST · thermo-mechanical FEA · NSGA-II optimisation · robotic laser welding · bench testing at 950 °C / 9 bar · full thermo-hydraulic report.

10
Working days
design proposal
12–16
Weeks to
prototype
→
Calculation software

Also: size any heat exchanger in minutes

Browser-based ε-NTU sizing tool, 10+ HX types, Žukauskas + Gnielinski + Darcy-Weisbach, TEMA/ASME outputs. Free, no installation.

Shell & Tube
Plate & Fin
Tube & Fin
Recuperators
Custom types
Try HEAX free ↗ Learn more
HEAX Designer · MST sizing
ArchitectureMST · 4 sections + S0
T_h,in · T_c,in800 °C · 134 °C
ṁ each side0.277 kg/s · C_r ≈ 1.0
Target ε85% → NTU = 5.71
Output: Thermal duty 157.9 kW
Send us your duty

Tell us ṁ, T_in, P, ε_target, ΔP budget.

We return a section-wise geometry table + thermo-hydraulic report. Typically within 10 working days.

Contact our engineers Try HEAX software ↗
